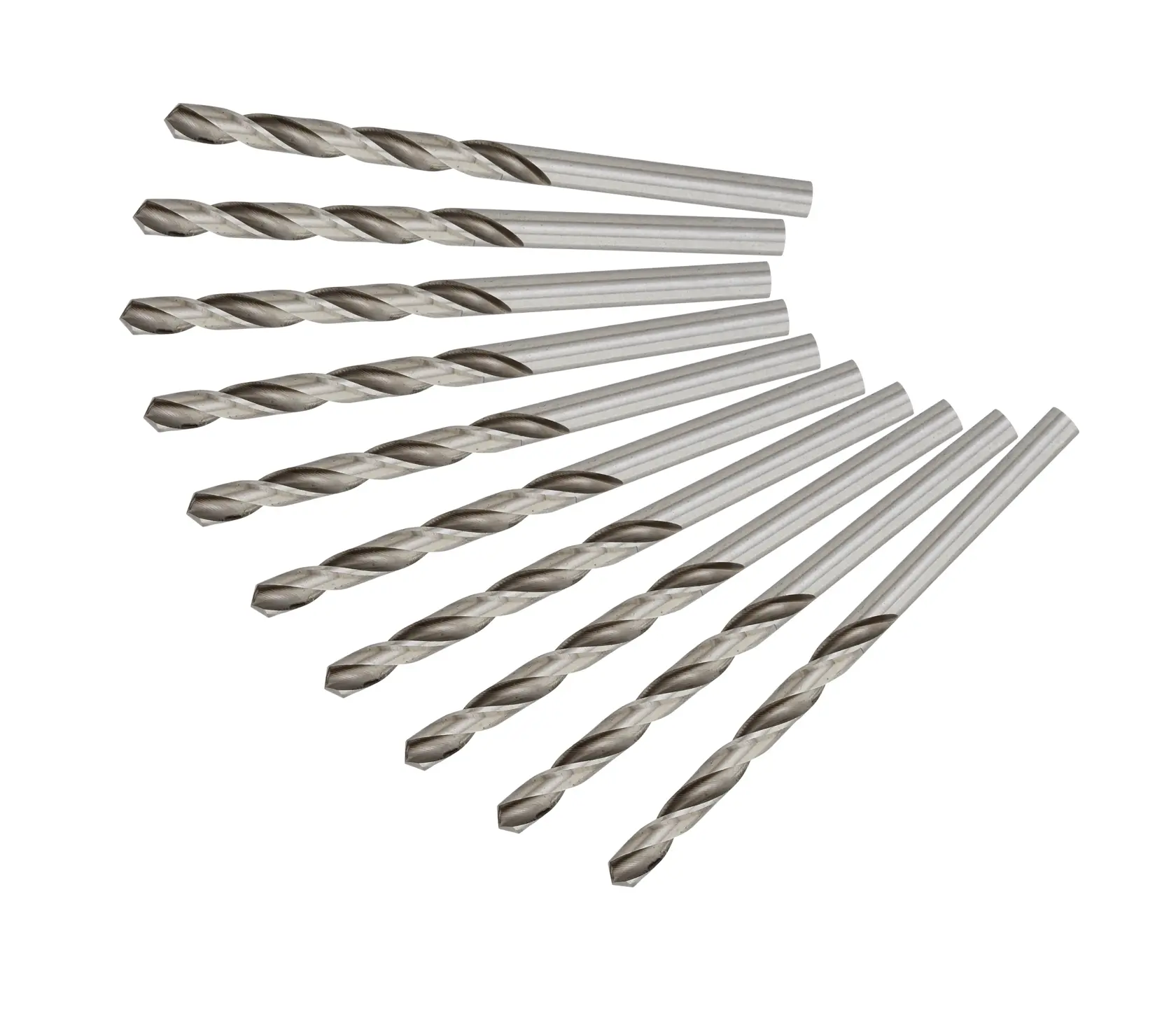

5mm HSS-G Metal Drill Bit (10 Pack)
DT5342-QZ
5mm HSS-G Metal Drill Bit (10 Pack)
- Suitable for portable or stationary drilling in steel cast steel, alloyed and non-alloyed material, grey cast-iron, spherical-granite cast iron, sintered iron, nickel, brass etc up to 900N/mm²
- Special steel made from high-performance, high-speed steel manufactured to DIN 33 for longer life
- Precision ground twist for rapid drilling, long life and excellent concentricity
Product Overview
With 5mm diameter, these metal drill bits feature a milled shaft and are made by high-performance, high-speed steel (HSS) manufactured to DIN 33 for longer life. Drills above 13mm (1/2") have a shank reduced to 12.7mm. For use in alloyed and unalloyed steels up to 900N/mm2 steel cast steel, grey cast-iron, sphericalgraphite cast iron, sintered iron, nickel, brass, etc. Precision ground twist for rapid drilling, long life and excellent concentricity. 10 Pack
Additional Features
- Has diameter tolerance to h8 grade leading to accurate hole diameter
- Suitable for portable or stationary drilling of high alloy content steels and metals with a tensile strength up to 1100N/mm
Applications
- Suitable for portable or stationary drilling in steel cast steel, alloyed and non-alloyed material, grey cast-iron, spherical-graphite cast iron, sintered iron, nickel, brass, etc up to 900N/mm².
Includes
- (10) 5mm HSS-G Metal Drill Bit
Specifications
|
Diameter [Metric]
|
5 mm
|
|
Product Width [Metric]
|
2 cm
|
|
CE Mark
|
No
|
|
Drill Length [Metric]
|
86 mm
|
|
Product Height [Metric]
|
2 cm
|
|
Product Weight [Metric]
|
0.108 Kg
|
|
Working Length [Metric]
|
52 mm
|
|
Application Material
|
Metal
|
|
Number of Pieces
|
10
|
|
Product Pack Quantity
|
10
|
|
Drill Material
|
HSS-G
|
|
Is it a Set
|
Yes
|
|
Packaging
|
PE Bag
|
|
Product Length [Metric]
|
11.5 cm
|
|
Shank/Connection
|
Round
|
