DT5229-QZ

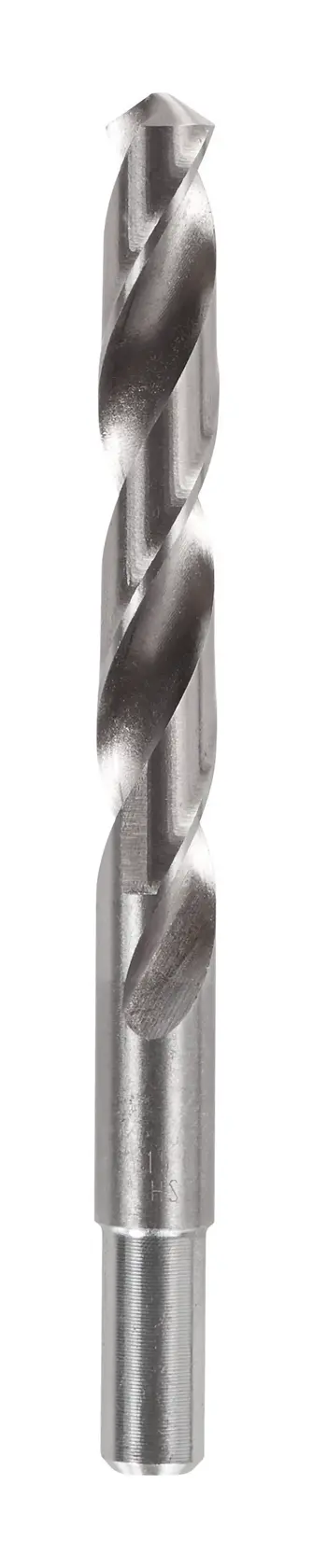

15mm HSS-G Metal Drill Bit
DT5229-QZ

15mm HSS-G Metal Drill Bit

  • Suitable for portable or stationary drilling in steel cast steel, alloyed and non-alloyed material, grey cast-iron, spherical-granite cast iron, sintered iron, nickel, brass etc up to 900N/mm²
  • Special steel made from high-performance, high-speed steel manufactured to DIN 33 for longer life
  • Precision ground twist for rapid drilling, long life and excellent concentricity
View more features
With 15mm diameter, these metal drill bits feature a milled shaft and are made by high-performance, high-speed steel (HSS) manufactured to DIN 33 for longer life. Drills above 13mm (1/2") have a shank reduced to 12.7mm. For use in alloyed and unalloyed steels up to 900N/mm2 steel cast steel, grey cast-iron, sphericalgraphite cast iron, sintered iron, nickel, brass, etc. Precision ground twist for rapid drilling, long life and excellent concentricity.

Additional Features

  • Patented web taper is 2X larger than the competition for increased strength, rigidity and breakage resistance

Applications

  • Suitable for portable or stationary drilling in steel cast steel, alloyed and non-alloyed material, grey cast-iron, spherical-graphite cast iron, sintered iron, nickel, brass, etc up to 900N/mm².

Specifications

Diameter [Metric]
15 mm
Head Type
HSS
Working Length
114 mm
Application Material
Metal
,
Metal
Number of Pieces
1
Product Pack Quantity
1
Product Length
169 mm
Is it a Set
No
,
No
