Impact Titanium Coated Metal Drilling Set (Small Tough Case)
DT50050-QZ
Impact Titanium Coated Metal Drilling Set (Small Tough Case)
- TOUGHCASE+ STACKABLE CASE: Versatile, customisable and connectable accessory set system. Cases lock together.
- MODULAR DESIGN: Connectable case allows multiple sets to be stacked and locked together.\nConnects to the small, medium, and large tough cases, and fits inside the TSTAK Caddy.
- TSTAK COMPATIBLE: To hold all your accessory sets in one place. \n(Connects via the TSTAK Caddy and the large tough case)
Product Overview

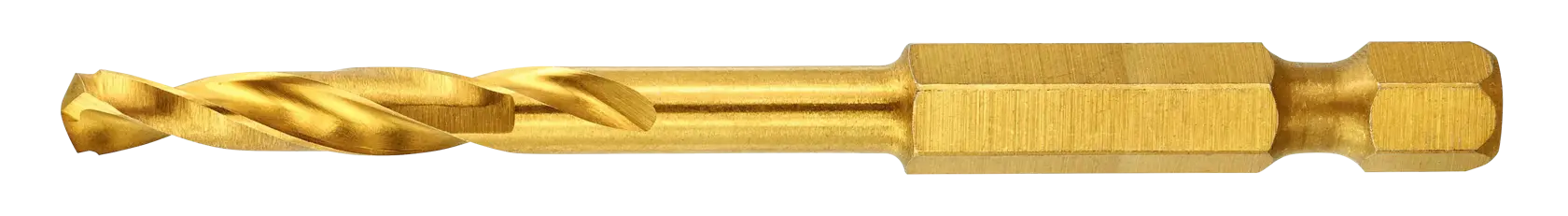

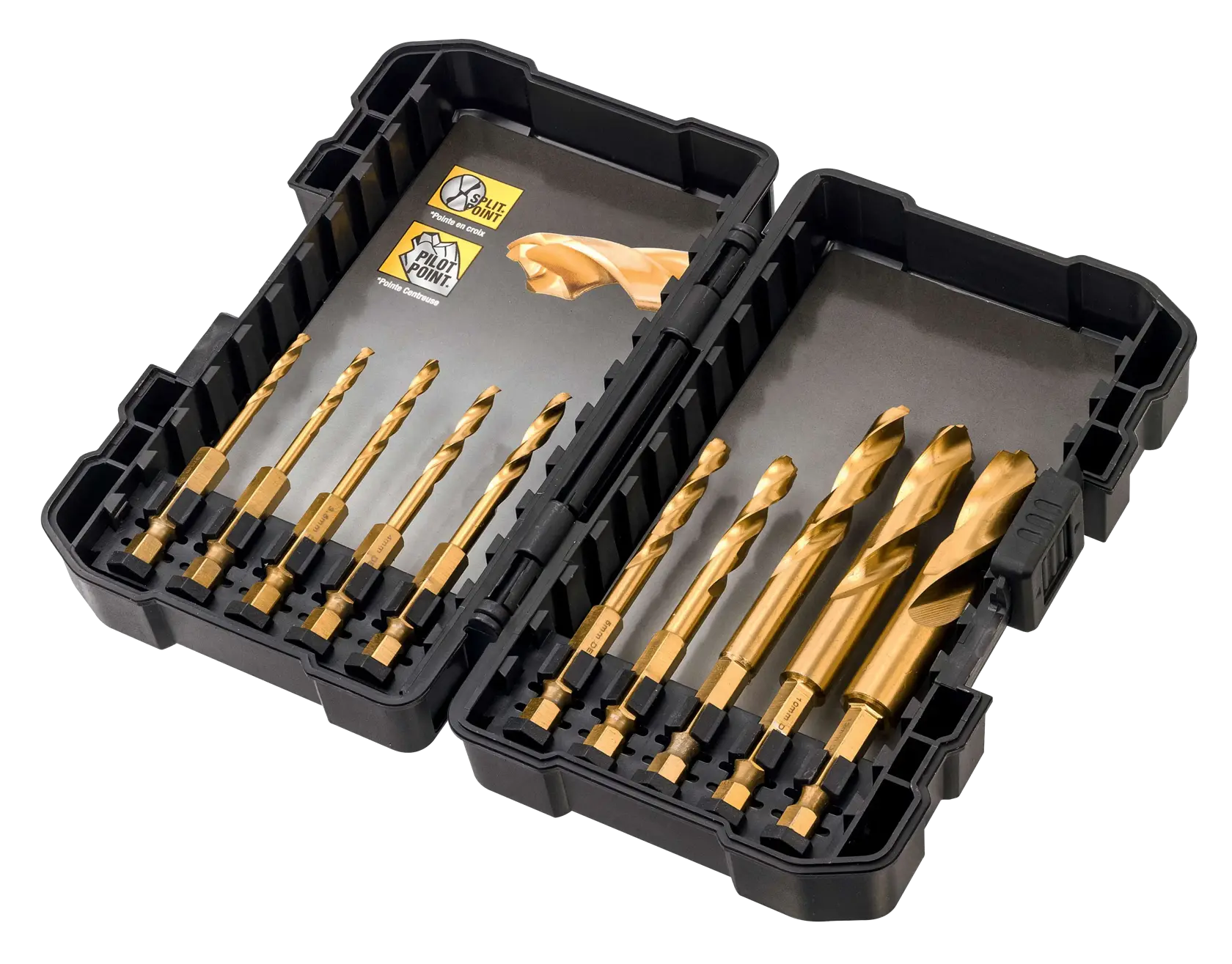

10 pieces set of Impact HSS Titanium Drill Bit featureing an anti slip shank, titanium coating for increased wear resistance, corrosion resistance and up to 2 x life (vs DEWALT black oxide). Ideal for application in in alloyed and unalloyed steels up to 900 N/mm² tensile strength, sheet metal and thin-walled profile material (pipes and without pre-punching)
Additional Features
- CLEAR LID: For quick and easy bit selection.
- INNER DOVETAIL SYSTEM: Bit bars and accessories can be moved around and customized to your preference.
- QUICK & EASY BIT REMOVAL / RETENTION: For user convenience.\nBits lock into place to prevent them falling out when not in use.
- IMPACT READY METAL DRILL BITS: For a range of metal drilling applications.
- QUICK CHANGE SHANK: For rapid change of accessory.
- HSS TITANIUM COATED METAL DRILL BITS: For increased wear and corrosion resistance, and longer life versus black oxide drill bits.
- OPTIMISED FLUTE GEOMETRY: Specifically ground shoulder cutting flutes for milling precise and clean holes.
- PILOT POINT TIP: Penetrates material faster and allows precise drilling on curved surfaces.
- CORE REINFORCEMENT: Core diameter increases in the direction of the shaft for maximized stability and durability.
- Optimized flute geometry - specifically ground shoulder cutting flutes for milling precise and clean holes.
- Pilot Point Tip penetrates material faster and allows precise drilling on curved surfaces.
- Core reinforcement - constantly increasing core diameter in the direction of the shaft for increased stability and durability.
Includes
- (10) Impact Titanium Metal Drill Bit: 3mm, 3.2mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm, 12mm
- (1) 3mm
- (1) 3.2mm
- (1) 3.5mm
- (1) 4mm
- (1) 4.5mm
- (1) 5mm
- (1) 6mm
- (1) 8mm
- (1) 10mm
- (1) 12mm
Specifications
|
Head Type
|
Pilot Point
|
|
Quick Change
|
Yes
|
|
Product Width [Metric]
|
22 cm
|
|
CE Mark
|
No
|
|
Tooth Direction
|
Clockwise
|
|
Product Height [Metric]
|
3.5 cm
|
|
Product Weight [Metric]
|
0.41 Kg
|
|
Application Material
|
Metal
|
|
Number of Pieces
|
10
|
|
Product Pack Quantity
|
1
|
|
Drill Material
|
HSS-Tin
|
|
Is it a Set
|
Yes
|
|
Packaging
|
Label
|
|
Shank/Connection
|
Hex
|
|
Product Length [Metric]
|
22 cm
|
