DFM115025P
3 x PTB-G 12x80mm Hot Dipped Galvanized
Product details

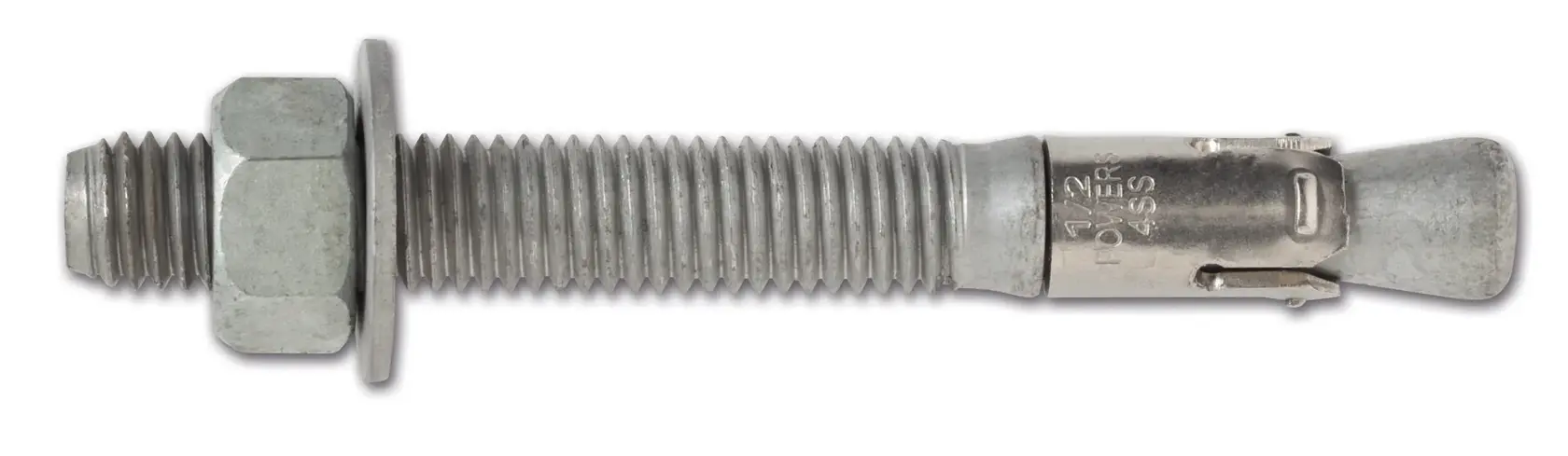

The PTB-PRO throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete.The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-PRO anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-PRO throughbolt for both standard and adverse loading conditions.
- Eta option 1 approval for cracked and uncracked concrete*
- Approved for seismic load applications (m8-m16** c1 approved and M12* c2 approved)
- Two approved embedment depths (M12 and m16)*
- Long thread for flexibility in fixture thicknesses
- Special cone angle for quick installation
- Fire resistance*
- * ptb-PRO zinc plated and stainless steel ** ptb-PRO zinc plated
Product Type
Expansion Anchor
Piece Count
1
Assembled Product Height
69.85-cm
Assembled Product Weight
0.06-kg
Barcode
5054905006099
- (1) DFM115025P
- No Warranty
We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
