DFM1110050

PTB-PRO Zinc Plated (m8 x 50 mm) (100 Pk)

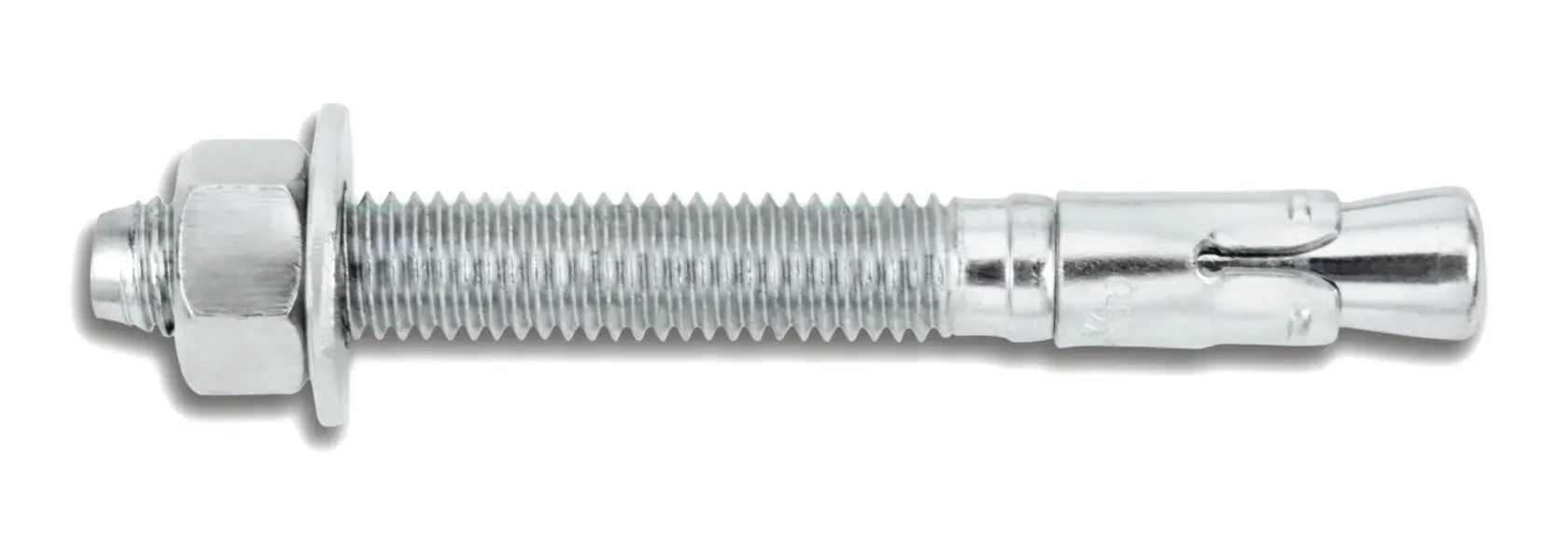

A metal anchor bolt with nut and washer, used for secure fixing in concrete or masonry surfaces.

Product details

The PTB-PRO throughbolt is a fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete.The anchor is easy to install and suitable for a variety of base materials with a nominal drill bit size the same as the anchor diameter. The wide range of available PTB-PRO anchor sizes also covers all common capacity demands with a superior load-displacement response that qualifies the PTB-PRO throughbolt for both standard and adverse loading conditions.

  • Eta option 1 approval for cracked and uncracked concrete*
  • Approved for seismic load applications (m8-m16** c1 approved and M12* c2 approved)
  • Two approved embedment depths (M12 and m16)*
  • Long thread for flexibility in fixture thicknesses
  • Special cone angle for quick installation
  • Fire resistance*
  • * ptb-PRO zinc plated and stainless steel ** ptb-PRO zinc plated

Product Type
Expansion Anchor
Product Finish
Zinc and Chrome Plated
Piece Count
100
Assembled Product Height
13.97-cm
Assembled Product Weight
0.36-kg

  • (1) Pack Of (100) Anchors

  • No Warranty

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.
