DCH274P2-GB

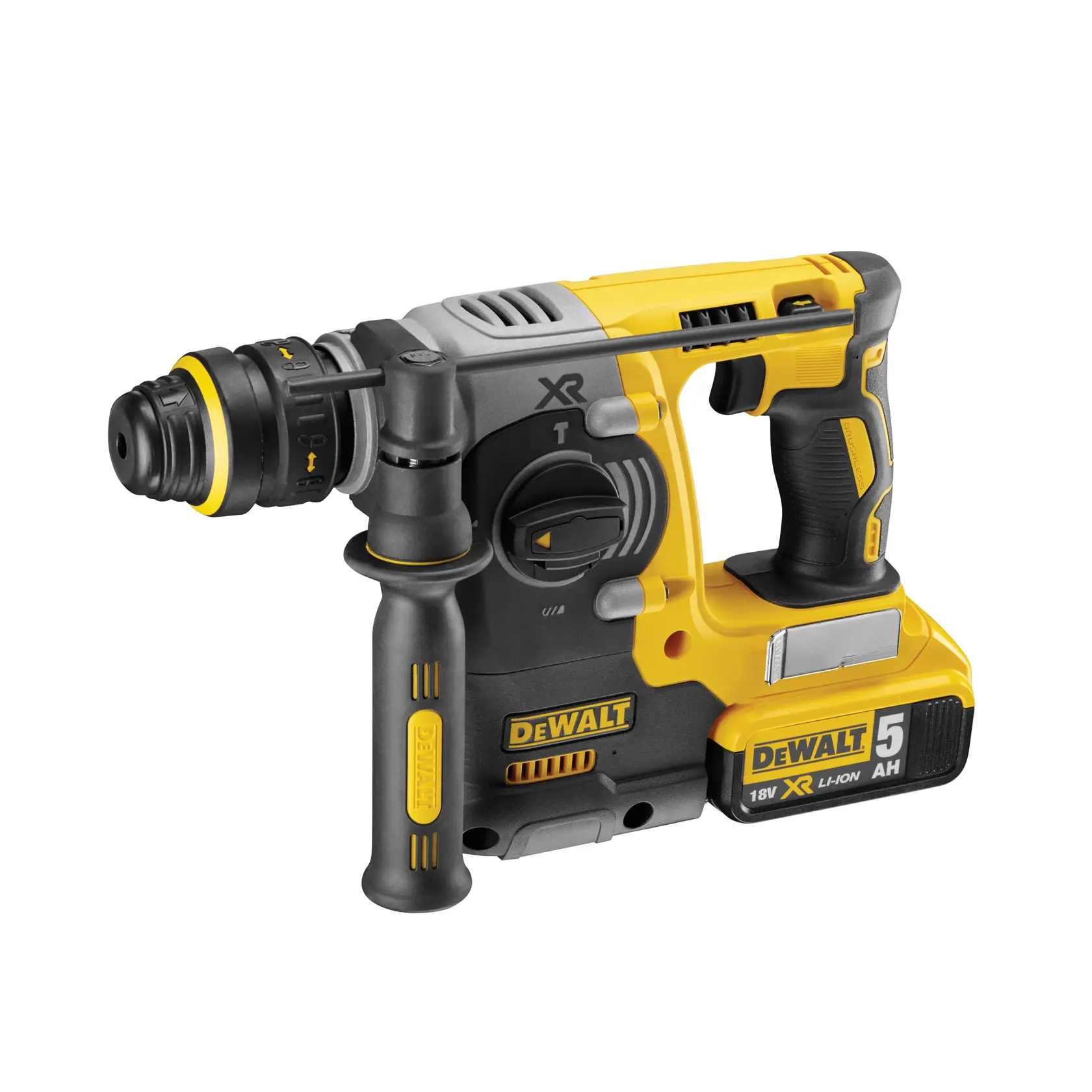

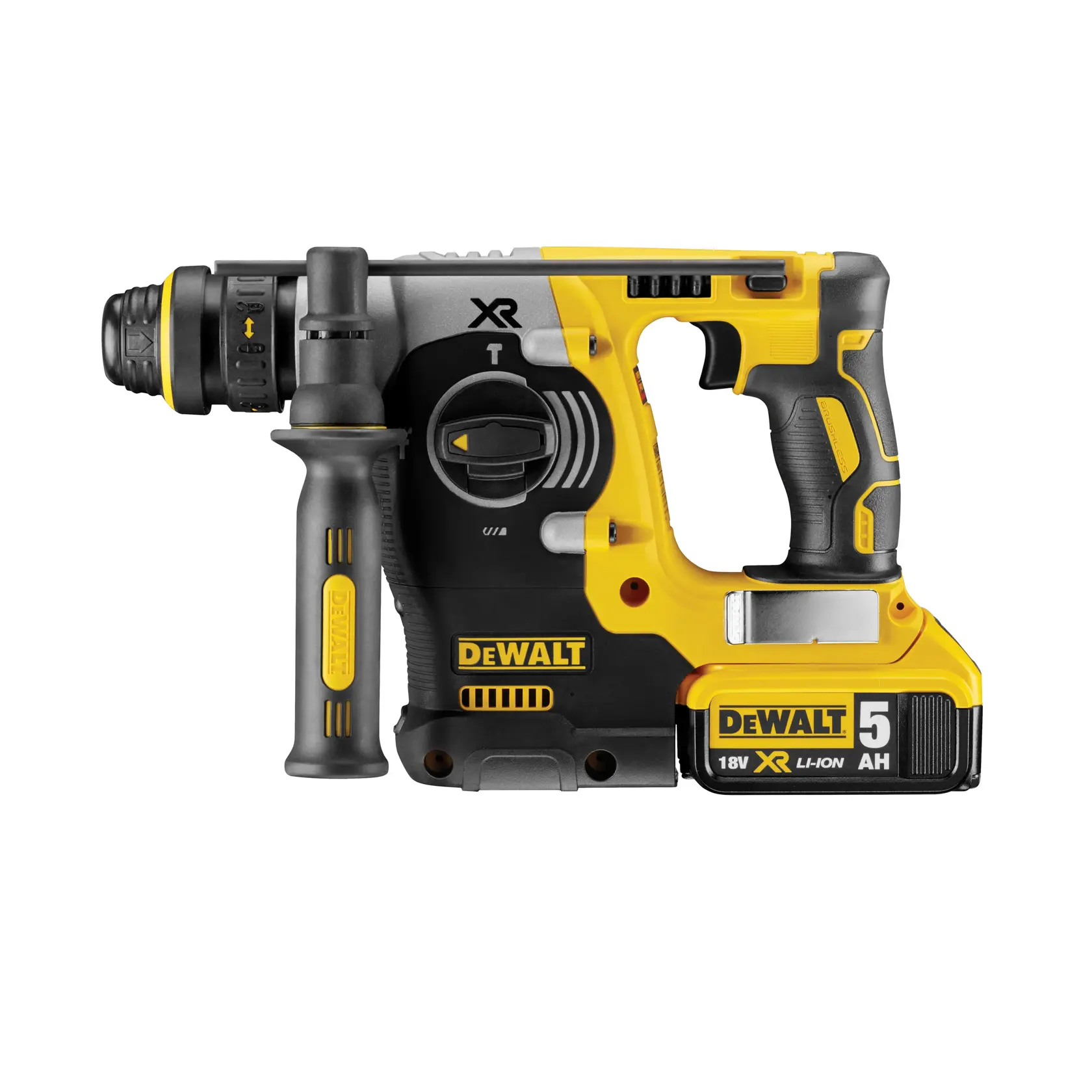

18V XR^® Brushless 24mm SDS-Plus Hammer Drill With QCC - 2 X 5Ah

Product details

Delivering 2.1 Joules of impact energy, and capable of drilling 24mm diameter holes in concrete, the brushless DCH274 hammer drill completes applications quicker than previous models. Part of our Perform & Protect range, it features anti roatation control and a low vibration level of 6.6m/s2 meaning you can work for longer. Includes an SDS Plus and 3 jaw ratchething quick change chucks. With 2 X 5Ah batteries, charger and TSTAK® kitbox.

2.1j of impact energy, 0-4600 BPM with a no load speed of 0-1100 RPM, ideal for drilling anchors and fixing holes into concrete, brick and masonry from 4mm to 24mm
PERFORM & PROTECT : Best-in-class vibration at 6.6m/s², minimizing user fatigue
Category-leading high speed drilling performance at more than 90 holes (10mm x 80mm) per charge
Electronic clutch for consistently-high torque and improved durability
Compact, lightweight and ergonomic design for improved comfort and support during extended operating periods

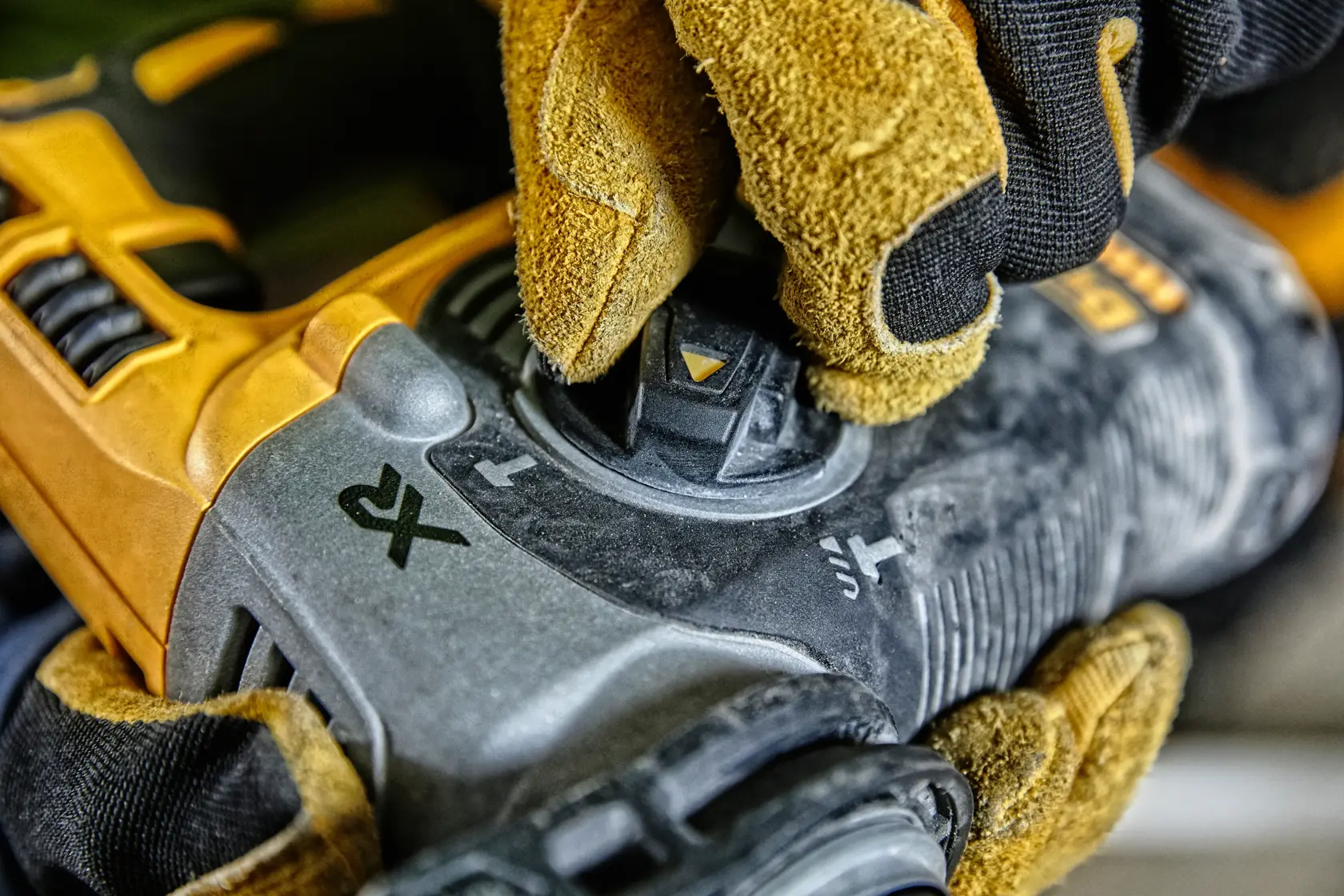

Rotation stop mode for light chiseling in plaster, tiles and render and impact stop mode for rotary only drilling in wood and metal
Quick release SDS-plus toolholder and keyless chuck supplied for easy switching between hammer / rotary hammer and rotary only applications
Bright white LED with delay feature improves visibility
Brushless motor with high capacity XR® 5.0ah 18v lithium-ion battery platform for extreme runtime and reduced maintenance

Product Type

Rotary Hammer Drill

Voltage

18V

Cordless or Corded

Cordless

Power Source

Battery

Motor Type

Brushless

(1) Belt Hook
(2) 5.0Ah XR Li-ion Battery Pack With State of Charge Indicator
(1) Multi-Voltage Xr Charger
(1) Multi-Position Side Handle
(1) Quick Release Sds-Plus Toolholder
(1) Quick Release 13mm 3 Jaw Chuck
(1) Heavy Duty Kitbox

1 Year Limited Warranty, 3 Year Limited Warranty When Registered

We take extensive measures to ensure all our products are made to the very highest standards and meet all relevant industry regulations.

Customer Support
